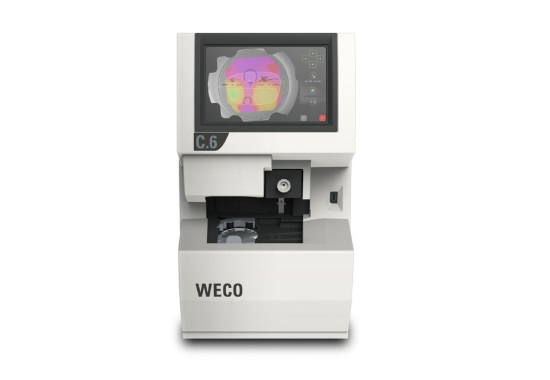

Blocker Weco C6

The WECO C.6 is the newest blocking solution from AIT, it is the first dedicated blocker to feature wave-front power mapping technology. This advanced feature allows you to see progressive lens designs with the lens shape superimposed, making edging progressives lenses incredibly fast and easy for the operator.

Another feature is the new Gravitech® non-contact optical tracing system that uses the center of mass of a demo lens to accurately reproduce the shape in 3 dimensions. Smart Design 2.0 technology allows the operator to cut customized rimless eyewear with ease. Trace times of under 4 seconds along with VCA/OMA compliance make this blocker ideally suited for multiple applications including retail and wholesale lab environments.

לצפייה ב-PDF

קישורים רלוונטים

לינק לאתר היצרן

לתיאור המורחב

Features include:
Smart Design
WECO C.6
Gravitech®
Eliminate
Easily

Wavefront power-mapping and lensometery

Smart Design shape tracing and modification with Bezier Curves
Elimination of lensmeter means one less step in the lens preparation process
Camera assisted blocking
Automatic blocking
Automatic drill point recognition
Manual adjustment of drill points
Easily add or remove holes or slots
Modify hole diameter
Ability to add blind holes
Positioning accuracy within .05mm
Automatic recognition of progressive markings
Non-contact camera tracing of demo lenses and patterns
Shape modification: both vertical and horizontal boxing can be modified by the operator
Color Touchscreen LCD
User-friendly touch based interface
Self-diagnosis Automatic calibration
Compliant with the VCA/OMA Communication Standard
